Inspection of vials with lyophilizates

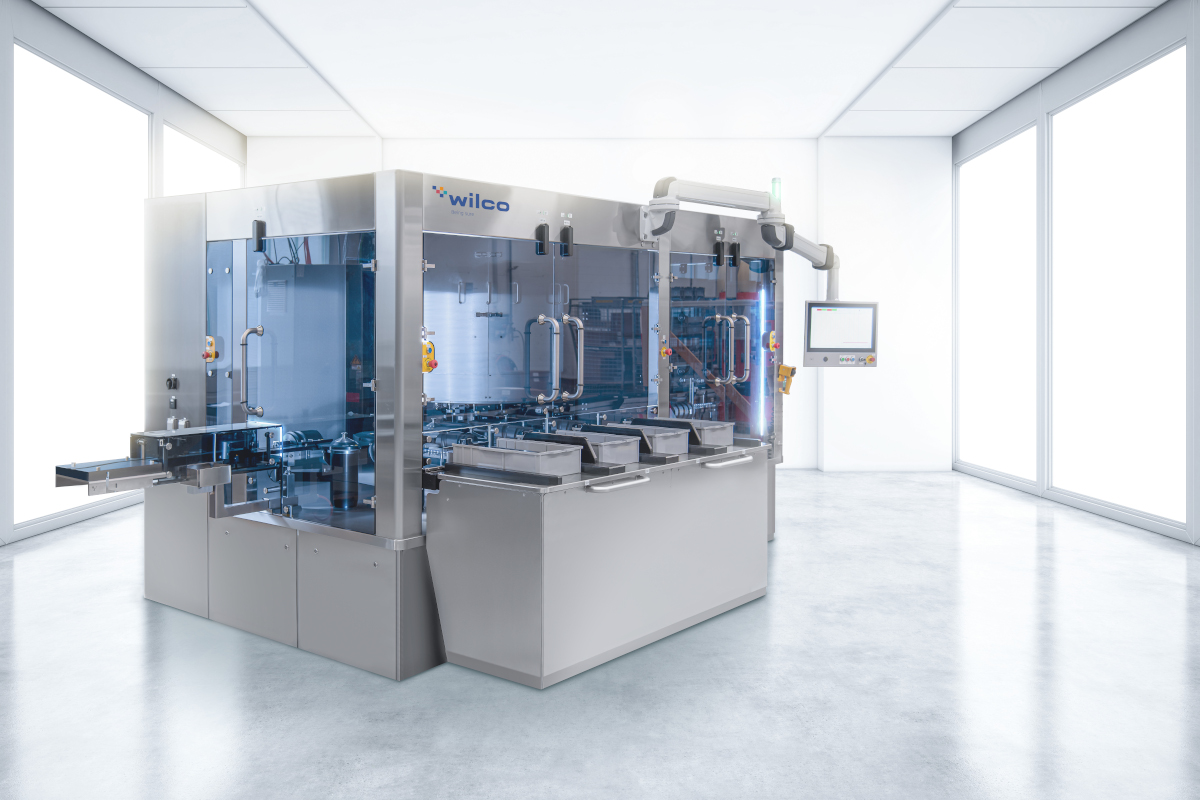

As part of its quality strategy, a large pharmaceutical group worldwide relies on inspection solutions from WILCO AG. In the past, the focus was on leak testing of sterile pharmaceuticals. Now the pharmaceutical giant is expanding its machine park with another trend-setting inspection system from WILCO. An inspection system that combines 3 inspection technologies on one platform - the VARIO MTX.

WILCO inspection of lyophilizates with different technologies

Highest requirements for the inspection of vials with lyophilizates

The central requirement of the system is the fully automatic inspection of various quality-relevant parameters of vials filled with lyophilized product. In addition, two defects of the packaging material, such as defects of the crimp cap. The product itself has to be inspected at over 400 units per minute and in 17 different formats.

Our approach: One platform with three inspection technologies

WILCO AG's broad technology portfolio was a good starting point for meeting these requirements, which also required some new developments. Our holistic concept convinced the customer. Our analysis of the initial situation and the objectives led to the conclusion that the requirements could not be met with one inspection technology alone.
Our envisaged a combination of visual inspection, headspace analysis and NIR spectroscopy. The aim was to accommodate these three inspection technologies in the most space-saving way possible.

Our solution for the 100% inspection of Lyo-Vials

Defects of the crimp cap are inspected with three camera systems. The special feature is that the optical system has no moving components and does not require any manual adjustment in case of a format change. This significantly increases process reliability and is also very user-friendly.

This is followed by an analysis of the residual moisture in the lyophilizate. This may vary depending on the freeze-drying process. However, if a critical value is exceeded, this can have a negative impact on the durability and thus the effect of the drug. Accordingly, a 100% control should be performed. A high-performance NIR spectrometer is used for this purpose. At full speed, light reflections of the product in the near infrared range are detected and evaluated by a spectrometer. This information is used to precisely determine water concentrations and thus enables the rejection of non-conforming products.

Finally, the oxygen concentration in the vial is measured fully automatically. Headspace analysis is used for this. Since oxygen concentrations of less than 0.7% had to be measured at a rate of 400/min, multiple laser systems are used. One innovation which has been implemented here is the latest generation of laser, which sets new standards in terms of sensitivity and thus enables new applications.

The advantages of our VARIO MTX solution with 3 inspection technologies

  • Holistic view of the inspection tasks for lyophilizates
  • Process specific technology selection and combination
  • High process reliability due to integrated verification systems
  • Optical system that does not require manual format adjustment
  • Processing of various products on one inspection platform
  • Support from method development to production start by our specialists
  • Low space requirement, as inspection tasks are carried out on a platform
  • Low changeover times and high machine availability

100% inline inspection of vials with lyophilizates
